While I recommend you take your new CHB-1 bass to a luthier for a set up when you first receive it, here is how you can quickly set the intonation and action height for your new bass.

[row] [col span=’1/2′]

1. Remove protective covers


Pick guards and pickups can have plastic covers to protect them from scratches. Remove these first
[/col] [col span=’1/2′]

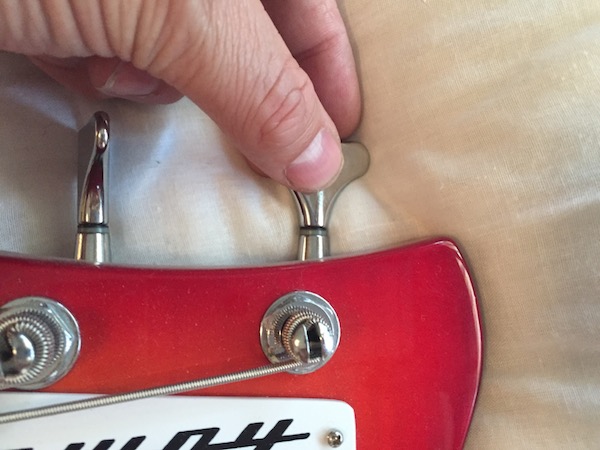

2. Loosen Strings


Loosen the strings by turning the machine heads. Loosen them enough so that the bridge can slide freely – but is still held in place by the strings.
[/col] [/row][row] [col span=’1/2′]

3. Remove the foam from the bridge


The bridge will have foam underneath it to prevent it from scratching the guitar body during shipping. Remove the foam carefully from underneath the bridge
[/col] [col span=’1/2′]

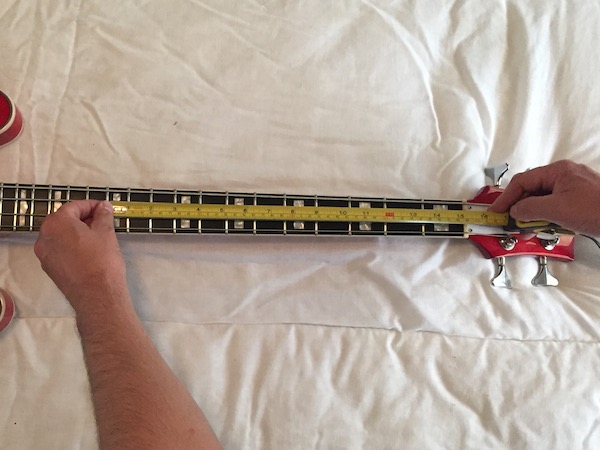

4. Measure from the nut to the 12th Fret


With a tape measure, measure from the nut to the 12th Fret (the nut is the part at the top of the neck that pinches the strings in place). The 12th Fret is marked with two dots on the side of the neck binding. This should measure approximately 39cm
[/col] [/row] [row] [col span=’1/2′]

5. Measure from the 12th Fret to the Bridge


Now measure from the 12th fret to the centre of the bridge. This should be the same distance (approx 39 cm). If it is not, slide the bridge to the right position. Don’t tighten the strings yet.
[/col] [col span=’1/2′]

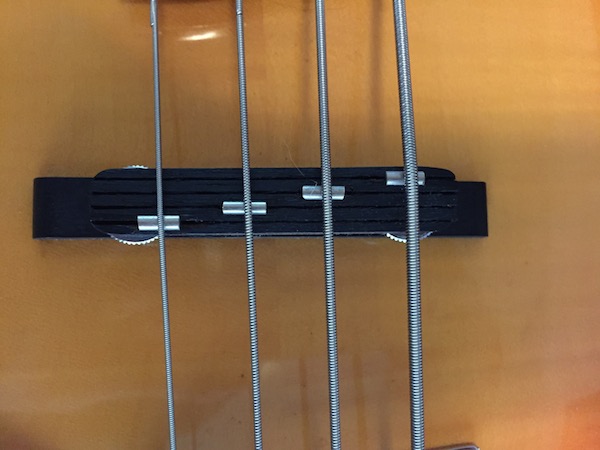

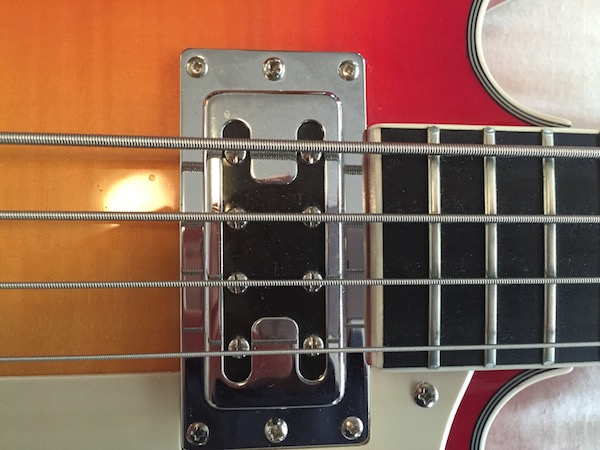

6. Check the bridge is centered


Ensure that all 4 strings pass over the pole pieces on the pickup, if they don’t, slide the bridge sideways until they do.
[/col] [/row][row] [col span=’1/2′]

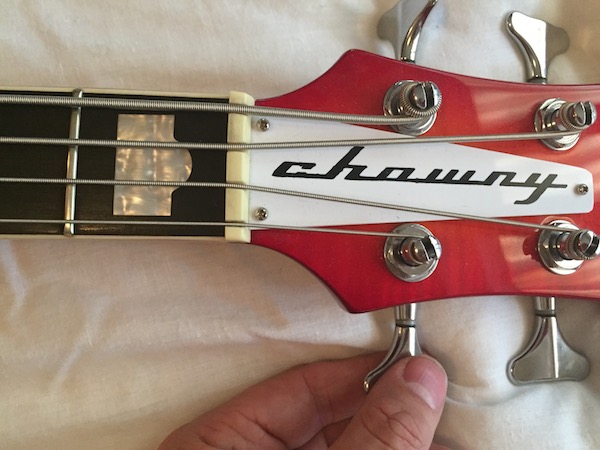

7. Tune in the open E string


Tune in the open E string using the tuner.
[/col] [col span=’1/2′]

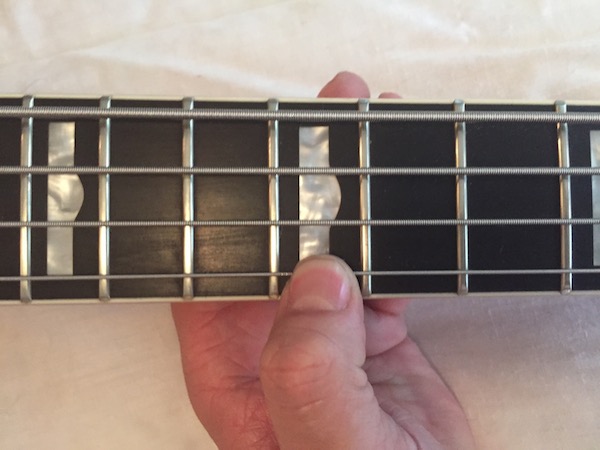

8. Check the 12th Fret on the E String


Play the 12th fret on the E String and check that it is also tuned to E.
[/col] [/row] [row] [col span=’1/2′]

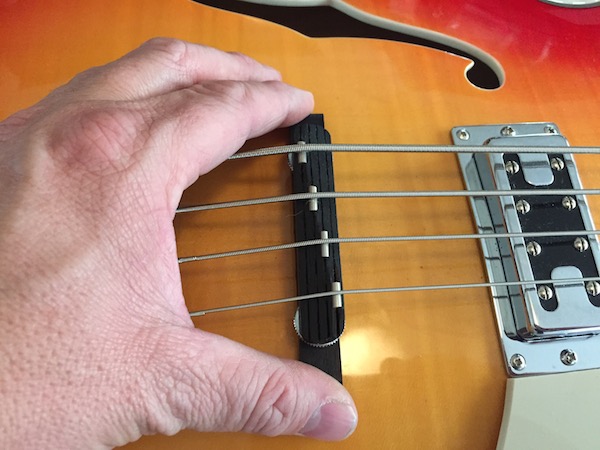

9. Adjust bridge if necessary


If the fretted 12th note is flat, slide the bridge slightly towards the neck, if it is sharp, slide the bridge slightly away from the neck. Use small movements. Keep playing the 12th note until it is in tune as E.
[/col] [col span=’1/2′]

10. Retune the open E string


Retune the open E string.
[/col] [/row] [row] [col span=’1/2′]

11. Repeat process until tuned


Repeat this process (steps 7 -10) until both the open and the fretted 12th E string are in tune.
[/col] [col span=’1/2′]

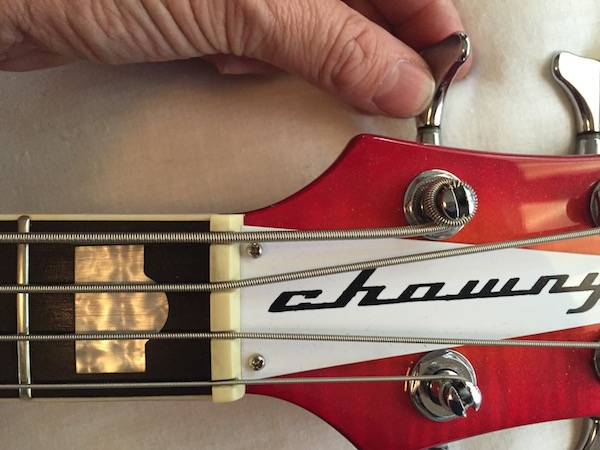

12. Tune the G-string


Now do the same process with the G string. When moving the bridge try keeping the E string end of the bridge in place. You can angle the bridge if necessary. Be careful to adjust it in small increments.
[/col] [/row] [row] [col span=’1/2′]

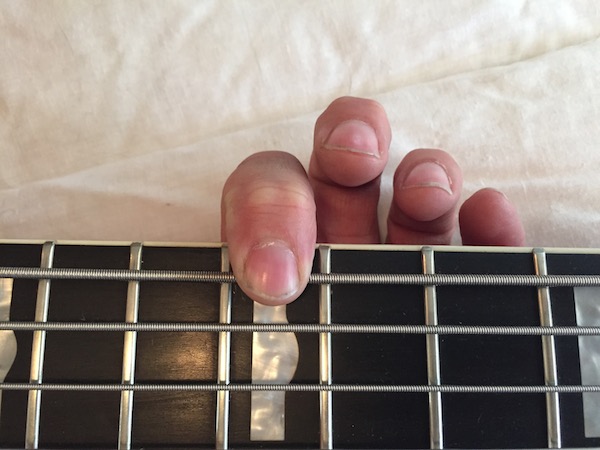

13. Tune the open G and 12th Fretted G


Do this until both the open G and the 12th fretted G string are in tune.
[/col] [col span=’1/2′]

14. Double Check the E String


Double Check that after your adjustments the E string (open and 12th Fretted) is still in tune. Adjust the bridge if necessary.
[/col] [/row] [row] [col span=’1/2′]

15. Tune in the remaining strings


Now tune in the open D and A strings.
[/col] [col span=’1/2′]

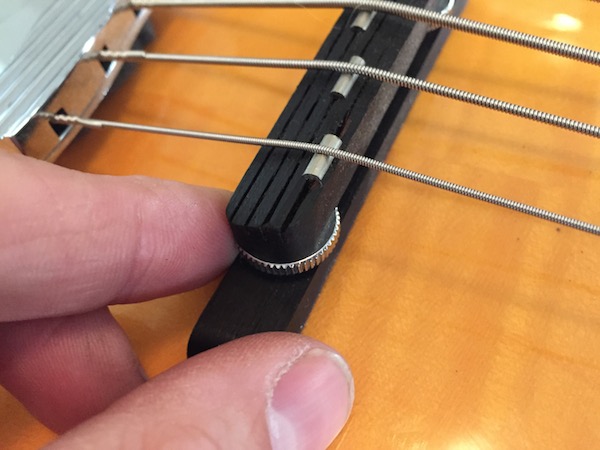

16. Adjust the action height if necessary


If required, you can adjust the action height by turning the adjustment screws on the bridge.
